PCB-only VDD 5002-01 Dual Symetric Output Module
PCB-only VDD 5002-01 Dual Symetric Output Module
PCB only
5,00 EUR
VAT exempt according to current tax regulations excl. Shipping costs
PCB and Panel only VDD 5002-01 Dual Symetric Output Module
PCB and Panel only VDD 5002-01 Dual Symetric Output Module
PCB and Panel only,
unpopulated pcb
https://diysynth.wiki.dsl-man.de/wiki/spaces/CHECKMATE/pages/688648/VDD+5002-01+DUAL+SYMMETRIC+OUTPUT+Module
9,00 EUR
VAT exempt according to current tax regulations excl. Shipping costs
Arp1601 Clone PCB
TOP
Arp1601 Clone PCB
back in Stock - limited Stock .
Shipping from Germany

The bundle includes:
1x 1601 pcb rev6b
1x clockdivider pcb
1x step1 fix pcb
3x keycaps included

The panelfile is avaible after purchase to make your own !!

Buildguide and BOM
https://diysynth.wiki.dsl-man.de/wiki/spaces/TTSHADDONS/pages/1442408/BOM+for+rev.+6b

 BOM for the Clockdivider:
https://diysynth.wiki.dsl-man.de/wiki/spaces/TTSHADDONS/pages/1442404/1601+Mods


105,00 EUR
VAT exempt according to current tax regulations excl. Shipping costs

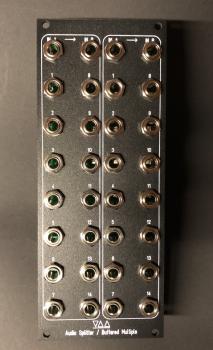

VDD Active Splitter and Buffered Multiple
VDD Active Splitter and Buffered Multiple
70,00 EUR
VAT exempt according to current tax regulations excl. Shipping costs
VDD Active Splitter und Buffered Multiple - PCB Set
VDD Active Splitter und Buffered Multiple - PCB Set
The internal Name: "VDD 3007", has 2 independent functions:
- Active (Audio) Splitter  2 Inputs and 14 Outputs (schaltbar 1 Eingang
plus
- Buffered Multiple with 2 Inputs and 14 Outputs

The PCB Set+ contains:
3 PCBs (ucb, lcb, control)
2x Ferritebeads

(ROHS - leadfree)
https://diysynth.wiki.dsl-man.de/wiki/spaces/MAIN/pages/1705308/VDD+3007+active+Splitter+buffered+Multiple
38,00 EUR
VAT exempt according to current tax regulations excl. Shipping costs
Syncussion Clone Power fix PCB
Syncussion Clone Power fix PCB
A small PCB which adds a clean -8V. - to improve the hum/noise problems on the SY-1 (THC Version)
and on few SY-1M the coil problem.
note: you must desolder few parts from the pcb and you must solder SMT parts.
there are 2 further options in this store, assembled version and "repair service"

a buildguide and BOM is available  on www.DSL-man.de
https://diysynth.wiki.dsl-man.de/wiki/spaces/DSO/pages/1147404/Syncussion+Power+Modification

The PCB is designed to mount it between Control PCB and analogboard
​​​​​​​unpopulated PCB
10,00 EUR
VAT exempt according to current tax regulations excl. Shipping costs
Syncussion Clone Power fix, assembled pcb
TOP
Syncussion Clone Power fix, assembled pcb
Note: assembled version
A small PCB which adds add a clean -8V. - to improve the hum/noise problems on the SY-1 (THC Version)
and on few SY-1M the coil problem.
note: you must desolder few parts from the pcb and before install this pcb, or buy the "repair service" from me.
a buildguide and BOM is available on:
https://diysynth.wiki.dsl-man.de/wiki/spaces/DSO/pages/1147404/Syncussion+Power+Modification

The PCB is designed to mount it between Control PCB and analogboard
27,00 EUR
VAT exempt according to current tax regulations excl. Shipping costs
STP4012 VCF MOTM
STP4012 VCF MOTM
Arp4012 based VCF mit CV Resonance,
designed in UK
grey panel only avaible
unpopulated PCBs and Panel
3U wide
5U height
power 15/-15V  ca.60mA

https://diysynth.wiki.dsl-man.de/wiki/spaces/MAIN/pages/1705300/STP4012+MOTM
80,00 EUR
VAT exempt according to current tax regulations excl. Shipping costs
