Pcbs & Panels

This PCB was designed for Pro DIY Builder who wants different Connector to build, test and repair devices or modular modules.
You should have an Bipolar Powersupply to connect this pcb.
There´s a LED test and LED resistor test section
the PCB comes unpopulated, i also offer a assembled pcb inmy shop too
The Banana connectors are for the Inputs of your Lab/Bench PSU - the common 0V can be brigded by the jumpers (if needed)

BOM:
https://diysynth.wiki.dsl-man.de/wiki/spaces/DSO/pages/1147558/Lab+PSU+Breakoutboard+PCB

12,50 EUR

VAT exempt according to current tax regulations excl. Shipping costs

Arp1601 Step1 Fix Mod PCB

This Modification helps to syncronize the first step1 to an external source.
when you try to sync from an external source the step2 is in sync with step1 from external.
This Mod fix this issue, for original 1601 and clones
PCB only - BOM and buildguide is available on my website DSL-man.de
https://diysynth.wiki.dsl-man.de/wiki/spaces/TTSHADDONS/pages/1442398/Arp1601+Step1fix+Mod

8,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

5x5 USB MIDI Interface DIY incl. PIC chip

The 5x5 USB Midi interface is based on the ploytec sources and comes with an preprogrammed chip (not soldered on the pcb)
the PCB is unpopulated

BOM and pictures:
https://diysynth.wiki.dsl-man.de/wiki/spaces/DSO/pages/1146929/USB+MIDI+Interface

Functions:
USB 2.0 - MIDI Interface - 5 Inputs, 5 outputs, LED status LEDS.

Please note: when the shop stock is on "Main" or "Haupt" it means, the stock is zero - it can happen when you try to order more than one pcb.

25,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

Arp1601 Step1 Fix Mod PCB - Kopie

This Modification helps to syncronize the first step1 to an external source.
when you try to sync from an external source the step2 is in sync with step1 from external.
This Mod fix this issue, for original 1601 and clones

assembled PCB with 2 ICs.
the CD4520 has to be used from your 1601 - and drop this pcb in this place.
- BOM and buildguide is available on my website DSL-man.de
https://diysynth.wiki.dsl-man.de/wiki/spaces/TTSHADDONS/pages/1442398/Arp1601+Step1fix+Mod

25,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

Korg Arp2600 Clock Mod für 3620 keyboard PCB only

Korg Arp2600 Clock Mod für 3620 keyboard PCB only
this mod offer a clock input - which sync the Arpeggiator to the external clock

please look at my website for more infos:
https://dsl-man.atlassian.net/wiki/spaces/DSO/pages/1147638/Arp2600+keyboard+3620+clock+input+Modification

Assembly / Install Service includes modification:
https://www.diysynth.de/assembly-service-and-repair/arp3620-clock-input-mod.html

12,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

SSM2140 Adapter PCB for SSM2040

This special PCB is designed to get from a SSI2140 a SSM2040.
Its not just a 20pin adapter to 16pins ! The designw as successfully tested in a RSF Kobol an sounds 99.9% authentic compared to the SSM2040.
You need the SSI2140 IC and 90degree pins, 2x 100nF caps to assemble this, which isnt included.
The PCB was made in EUROPE, not cheap chinese fab,
I offer assembled versions in my shop too.

14,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

SSM2140 Adapter PCB for SSM2040 - assembled

This special IC PCB is designed to get from a SSI2140 a SSM2040.
Its a drop-in replacement for the SSM2040, which is hard to find.
this offer is for the assembled version
Its not just a 20pin adapter to 16pins ! The design was successfully tested in a RSF Kobol an sounds 99.9% authentic compared to the SSM2040.
The PCB was made in EUROPE, not in a cheap chinese fab,
Its the assembled version with round milled pins, which fits in milled IC sockets and springversions. 16pole.
Every IC is tested in a RSF Kobol clone.

38,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

Waldorf M QComp PCB

bare PCB for the Waldorf M, 8 voice
in case you have the 16 voice version, you need only 1 PCB !
unpopulated pcb.
see: https://maffez.com/?page_id=4003

i offer populated PCBs in my shop too.

12,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

Waldorf M QComp PCB - populated

populated PCB for the Waldorf M, 8 voice
in case you have the 16 voice version, you need only 1 PCB

see: https://maffez.com/?page_id=4003

i offer bare PCBs in my shop too.

30,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

SOIC14 Adapter DIP14

Adapter from SOIC14 to DIP14

0,60 EUR

VAT exempt according to current tax regulations excl. Shipping costs

BA662 replacement PCB

These bare PCB is designed to use a AS662D in SOIC and get a BA662 footprint and pinout.
you can use angled or straight pin adapter or socket, 2.54mm standard pin spacing.
perfect for RE-909, RE-808, RE-303, SR-808

BARE PCB
a assembled version is available in the shop too

2,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

BA662 replacement PCB assembled

These PCB is assembled with a AS662D in SOIC and get a BA662 footprint and pinout.
you can use angled or straight pin adapter or socket, 2.54mm standard pin spacing
if you want have soldered pins (straight or angled) just leave a note in the order process at the checkout or send me a email.

perfect for RE-909, RE-808, RE-303, SR-808

Assembled PCB
a bare PCB version is available in the shop too

11,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

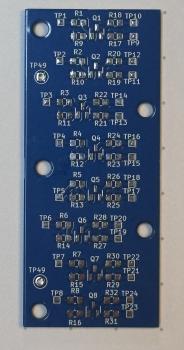

TTSH Gatebooster

TTSH Gatebooster
unpopulated PCB

7,50 EUR

VAT exempt according to current tax regulations excl. Shipping costs

TTSH Gatebooster assembled

TTSH Gatebooster assembled ready to use.
It converts 5V Gate signals to 11V and offer a additional Trigger Signal

https://diysynth.wiki.dsl-man.de/wiki/spaces/TTSH/pages/1310759/TTSH+Gatebooster

27,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

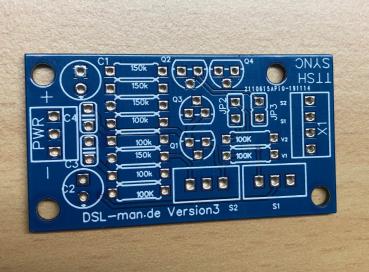

TTSH VCO SYNC PCB

This a modified TTSH SYNC PCB, to sync your 3 VCOs

my PCB version is improved and gives you Mounting holes, more space for MTA100 headers.
https://diysynth.wiki.dsl-man.de/wiki/spaces/TTSH/pages/1310751/TTSH+Mod+VCO+Sync+Option

5,50 EUR

VAT exempt according to current tax regulations excl. Shipping costs
