Our advice

Arp1601 Clone PCB

back in Stock - limited Stock .
Shipping from Germany

The bundle includes:
1x 1601 pcb rev6b
1x 100R SMT 0603 to DIL Adapter PCB
1x clockdivider pcb
1x step1 fix pcb

The panelfile is avaible after purchase to make your own !!

Buildguide and BOM
https://diysynth.wiki.dsl-man.de/wiki/spaces/TTSHADDONS/pages/1442408/BOM+for+rev.+6b

BOM for the Clockdivider:
https://diysynth.wiki.dsl-man.de/wiki/spaces/TTSHADDONS/pages/1442404/1601+Mods

105,00 EUR

SSM2140 Adapter PCB for SSM2040

This special PCB is designed to get from a SSI2140 a SSM2040.
Its not just a 20pin adapter to 16pins ! The designw as successfully tested in a RSF Kobol an sounds 99.9% authentic compared to the SSM2040.
You need the SSI2140 IC and 90degree pins, 2x 100nF caps to assemble this, which isnt included.
The PCB was made in EUROPE, not cheap chinese fab,
I offer assembled versions in my shop too.

14,00 EUR

Dotcom Busboard PCB - assembled

Busboard for Dotcom connectors, assembled
10x MTA100 dotcom
1x MTA156 MOTM
1x pole MTA100 5 pole or Molex style
2oz copper
ROHS

20,00 EUR

Dotcom Eurorackbus adapter

Dotcom Eurorack adapter to adapt/convert from Eurorack to dotcom.
You can plug the connector in a eurorack busboard
pay attention eurorack is 12V, dotcom normally 15v
the white stripe on the pcb is minus - pay attention that you install the adapter in correct way

6,00 EUR

MUPSU-1

The MUPSU-1 power supply was specially developed for MU-format modules (dotcom), which require additional 5V, as well as -15V and +15V.
The 5V rail has a maximum current of 1200mA, making it ideal for large sequencers or digital modules.
-15V has a maximum current of 670mA,
+15V has a maximum current of 670mA.
(I personally use the power supply with a MOTM to dotcom (MU) cable for my MOTM modules such as the MOTM650, MOTM730, Q960, and Moon Modular M569 and M568.)
The board contains coils and capacitors to ensure EMC compliance.

The package includes the assembled circuit board; additionally, you will need (not included) a wall-mounted power supply, e.g., 12V/2A, as well as a suitable socket and cable for connecting to the circuit board.
The MUPSU-1 power supply can be switched on/off using an optional switch, or a wire jumper can be installed in the screw terminal.

100,00 EUR

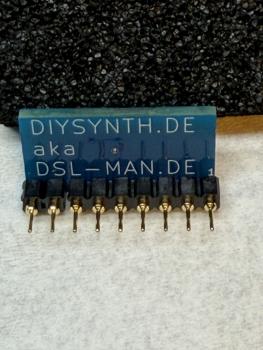

BA662 replacement PCB assembled

These PCB is assembled with a AS662D in SOIC and get a BA662 footprint and pinout.
you can use angled or straight pin adapter or socket, 2.54mm standard pin spacing
if you want have soldered pins (straight or angled) just leave a note in the order process at the checkout or send me a email.

perfect for RE-909, RE-808, RE-303, SR-808

Assembled PCB
a bare PCB version is available in the shop too

11,00 EUR

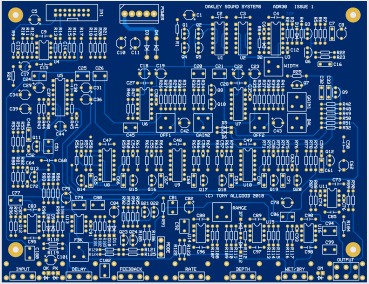

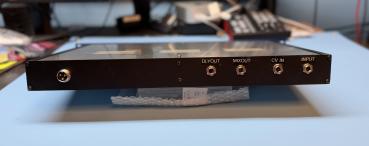

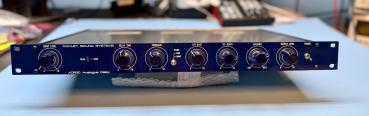

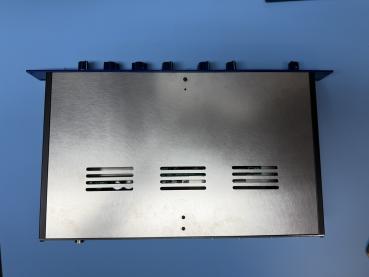

Oakley Sound Systems ADR30 PCB

Oakley Sound Systems ADR30 PCBThe SRIO PCB for the I/O Connections and the RPSU (Powersupply PCB) is not included and is for sale as a separate item.

Productpage: https://diysynth.wiki.dsl-man.de/wiki/spaces/OUTBOARD/pages/893845508/Oakley+Sound+Systems+ADR30+Product+Information
DIY page with infos: https://diysynth.wiki.dsl-man.de/wiki/spaces/OUTBOARD/pages/306511922/Oakleysound+ADR30+Delay

HASL LEAD FREE

198.12 mm* 152.4 mm

40,00 EUR

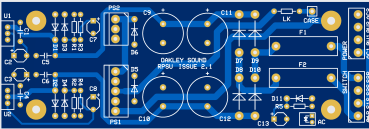

Oakley Sound Systems RPSU PCB

Oakley Sound Systems RPSU PCB

HASL LEAD FREE

10,00 EUR

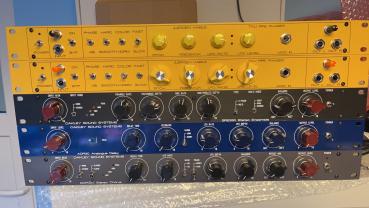

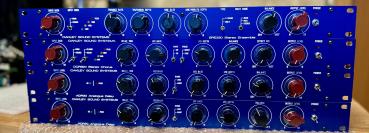

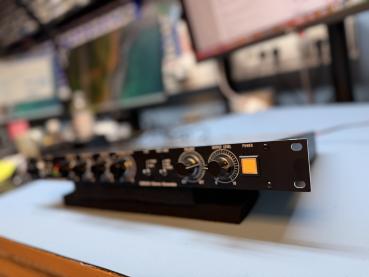

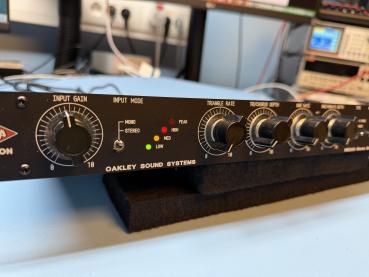

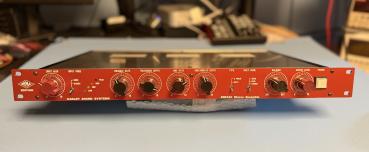

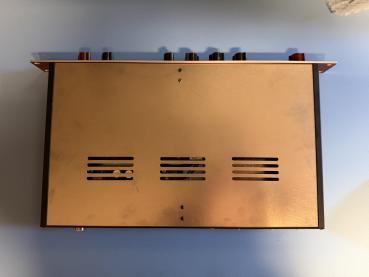

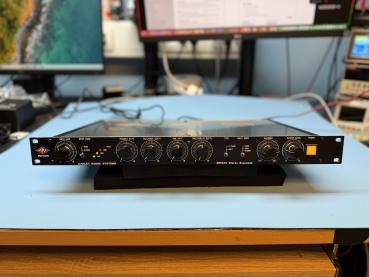

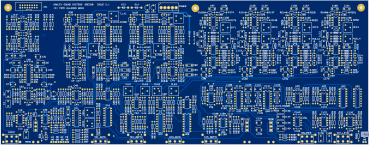

SRE-330 Factory Build - Kopie

Oakley Sound Systems - Stereo Ensemble Chorus.

Detailed information can be found here: Oakley+Sound+Systems+SRE-330+Product+information

Balanced stereo 6.3mm inputs and balanced stereo outputs (6.3mm)

Made in Germany.

WIMA film capacitors gave the limited edition a new look.

This small production run was created due to the discontinuation of WIMA MKS capacitors.

A review can be found here: https://www.amazona.de/test-oakleysound-sre-330-ensemble-chorus-diy/

Included in the box is an external power supply for 230V within the EU.

Outside the EU, a power supply is not included; a flat fee of €30 will be charged separately. (except Swiss)

1.250,00 EUR

ADR30-Controlpanel PCB

ADR30-Controlpanel PCB
just connect the Control Panel PCB to the included ADR30 Adapter PCB and use my Frontpanel Design, you save time, no handwiring.
no brackets required

13,00 EUR

New product

ADR30-Controlpanel PCB

ADR30-Controlpanel PCB
just connect the Control Panel PCB to the included ADR30 Adapter PCB and use my Frontpanel Design, you save time, no handwiring.
no brackets required

13,00 EUR

DCR320-Controlpanel PCB

DCR320-Controlpanel PCB
just connect the Control Panel PCB to the included DCR320 Adapter PCB and use my Frontpanel Design, you save time, no handwiring.
no brackets required

Your price 10,00 EUR

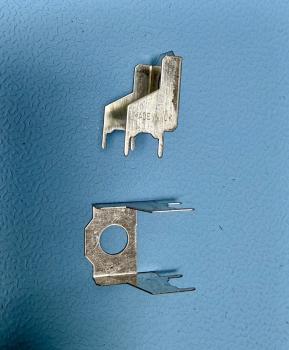

Bracket for 16mm Alpha Potentiometer

0,50 EUR

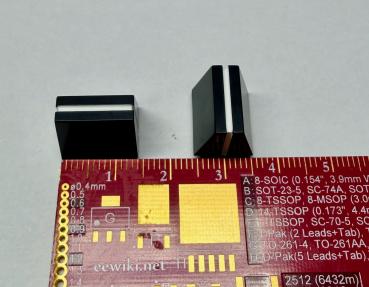

Syncussion Slider Knob

Syncussion Slider Knob
Fits on the Pearl SY-1
psycox SY-1M
THC SY1

3,50 EUR

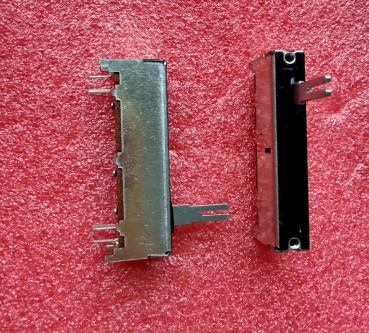

Slider for Pearl Syncussion SY-1

ONE Slider for Pearl Syncussion SY-1
please make a note which value you need at the order

10,00 EUR

Curetronics Busboard assembled

Curetronics Busboard assembled
10x connector + 2x Screw Terminal
its possibe to use this PCB for Euroracksystems with 10pin connectors.

18,00 EUR

Curetronics Busboard PCB only

Curetronics Busboard PCB only
10x connector + 2x Screw Terminal
its possibe to use this PCB for Euroracksystems with 10pin connectors.

9,00 EUR
