this Powersupply PCB was designed by me with my own requirements, especially for the TTSH and other -12/-15V/-18V + 12/+15/+18V DC outputs
Fuses for Input and Output
massive Terminal connectors
different options to mount the LM337/LM317

more infos and BOM on:
https://diysynth.wiki.dsl-man.de/wiki/spaces/DSO/pages/1146898/Bipolar+Powersupply+BIPO

14,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

LAB PSU Breakoutboard PCB

This PCB was designed for Pro DIY Builder who wants different Connector to build, test and repair devices or modular modules.
You should have an Bipolar Powersupply to connect this pcb.
There´s a LED test and LED resistor test section
the PCB comes unpopulated, i also offer a assembled pcb inmy shop too
The Banana connectors are for the Inputs of your Lab/Bench PSU - the common 0V can be brigded by the jumpers (if needed)

BOM:
https://diysynth.wiki.dsl-man.de/wiki/spaces/DSO/pages/1147558/Lab+PSU+Breakoutboard+PCB

12,50 EUR

VAT exempt according to current tax regulations excl. Shipping costs

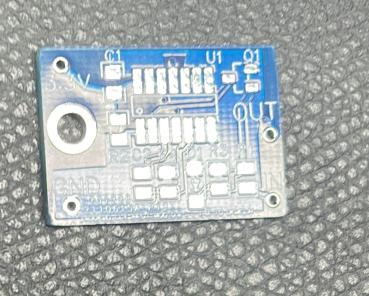

MN3002 replacement

This assembled adapter comes with an TDA1022 BBD 512 stage IC.
the TDA1022 was tested
Was tested in many DIY projects. for example CE-1 Chorus Pedals.

39,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

Arp1601 Step1 Fix Mod PCB

This Modification helps to syncronize the first step1 to an external source.
when you try to sync from an external source the step2 is in sync with step1 from external.
This Mod fix this issue, for original 1601 and clones
PCB only - BOM and buildguide is available on my website DSL-man.de
https://diysynth.wiki.dsl-man.de/wiki/spaces/TTSHADDONS/pages/1442398/Arp1601+Step1fix+Mod

8,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

Arp1601 Step1 Fix Mod PCB - Kopie

This Modification helps to syncronize the first step1 to an external source.
when you try to sync from an external source the step2 is in sync with step1 from external.
This Mod fix this issue, for original 1601 and clones

assembled PCB with 2 ICs.
the CD4520 has to be used from your 1601 - and drop this pcb in this place.
- BOM and buildguide is available on my website DSL-man.de
https://diysynth.wiki.dsl-man.de/wiki/spaces/TTSHADDONS/pages/1442398/Arp1601+Step1fix+Mod

25,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

Korg Arp2600 Clock Mod für 3620 keyboard PCB only

Korg Arp2600 Clock Mod für 3620 keyboard PCB only
this mod offer a clock input - which sync the Arpeggiator to the external clock

please look at my website for more infos:
https://dsl-man.atlassian.net/wiki/spaces/DSO/pages/1147638/Arp2600+keyboard+3620+clock+input+Modification

Assembly / Install Service includes modification:
https://www.diysynth.de/assembly-service-and-repair/arp3620-clock-input-mod.html

12,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

DSL-man.de

TTSH AUDIOPATH upgrade set

This Set contains 2 special and very rare Opamps which change your TTSH in the direction of a Blue Marwin/Grey Meanie.
The Mod is for the VCA and VCF (4012).

an illustrated installguide is included - printversion. (also avaible as Email)

no return possible on this parts.
the price is not just for the parts, its knowledge too

60,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

Dotcom Busboard PCB

Busboard for Dotcom connectors
10x MTA100 dotcom
1x MTA156 MOTM
1x pole MTA100 5 pole or Molex style
2oz copper
ROHS

12,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

Dotcom Busboard PCB - assembled

Busboard for Dotcom connectors, assembled
10x MTA100 dotcom
1x MTA156 MOTM
1x pole MTA100 5 pole or Molex style
2oz copper
ROHS

20,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

Dotcom to Dotcom Cable 50cm

50cm dotcom to Dotcom cable - for my busboard (for example)

11,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

COTK to Dotcom Adapter

14pin COTK Adapter to Dotcom - see Picture

8,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

COTK to Dotcom Adapter - Kopie

14pin COTK Adapter to Dotcom - PCB
you can use it with a 16pin header for Eurorack too
pay attention of your required voltages and pinout

4,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs

MUPSU-1

The MUPSU-1 power supply was specially developed for MU-format modules (dotcom), which require additional 5V, as well as -15V and +15V.
The 5V rail has a maximum current of 1200mA, making it ideal for large sequencers or digital modules.
-15V has a maximum current of 670mA,
+15V has a maximum current of 670mA.
(I personally use the power supply with a MOTM to dotcom (MU) cable for my MOTM modules such as the MOTM650, MOTM730, Q960, and Moon Modular M569 and M568.)
The board contains coils and capacitors to ensure EMC compliance.

The package includes the assembled circuit board; additionally, you will need (not included) a wall-mounted power supply, e.g., 12V/2A, as well as a suitable socket and cable for connecting to the circuit board.
The MUPSU-1 power supply can be switched on/off using an optional switch, or a wire jumper can be installed in the screw terminal.

100,00 EUR

VAT exempt according to current tax regulations excl. Shipping costs
